На фотографіях показана гнучка позначка RFID (текстильна/силіконова) для текстильних виробів, пралень і хімчисток. Підходить для використання з будь-якими зчитувачами RFID UHF в готелях, СПА, будинках престарілих, спортивних клубах, магазинах, складах для роботи з програмами обліку й керування переміщенням текстильних виробів. Може служити ефективним засобом як захист бренду й містити (записувати) інформацію виробника, продавця. Використання цих міток дозволяє відстежувати та керувати рухом текстилю, сортувати по групах, проводити інвентаризацію, рахувати кількість хімчисток і прань, захищаючи при цьому вироби від крадіжок.
Специфікація:
Конкурентна перевага:
The price: $ 0.55 for 1 piece with the purchase of 10,000 pieces.
«Текстиль позначки» дороговказ по інтеграції (PDF формат)
 |
 |
зчитувач (мобільний термінал збору даних)
вартість 2200$ включно з програмнимзабезпеченням, якеінтегрується з 1С: Керування торгівлею
|
RFID |
|
|
Operating frequency |
UHF 860-960 MHz |
|
Protocol |
ISO18000-6C, EPC Class 1 Gen 2, ISO18000-6B |
|
Reading distance |
400-1300 cm |
|
RSSI |
Indicator of received signal |
|
Discrepancy prevention |
Reading upto 400 tags at a time |
|
Antenna polarization |
Circular polarization |
|
SDK |
Free SDK conditions applied to a reader |
|
System possibilities |
|
|
Operation system |
Microsoft® Windows CE® 6.0 или Android OS v2.2 |
|
Processor |
SAMSUNG Cortex-A8(1GHz) |
|
Memory |
|
|
Memory |
256MB/512MB Mobile DDR RAM |
|
Flash-memory |
256MB/512MB Nand Flash ROM |
|
Additional inline memory |
Micro SD 32G (Maximum) |
|
Audio, slots, ports |
|
|
USB ports |
yes |
|
Slots |
1 MicroSD Slot, 1 GSM/GPRS Slot |
|
Camera |
It extends |
|
1D bar-code |
available |
|
2D bar-code |
It extends |
|
Input/output device |
|
|
Input device |
QWERTY keyboard, touch-screen in colour, stilos, start button, upper-case input support |
|
Output device |
3.5” Transmitting LCD, QVGA(240 x 320) or VGA(480 x 640), LED x 2, zoomer (sound buzzer) |
|
Communication functions |
|
|
Wi-Fi |
802.11b/g |
|
GPRS (GSM) |
GSM/GPRS/EDGE: 850/900/1800/1900MHz |
|
3G |
WCDMA / CDMA2000 |
|
Bluetooth |
Bluetooth 2.1 + EDR class 2 |
|
GPS |
integrated |
|
Features |
|
|
Dimensions |
190 x 75 x 30 mm |
|
Weight |
520 g (with a battery) |
|
Case colour |
Matted black |
|
Energy features |
|
|
Battery |
Rechargeable 3.7V 4000mAh battery (accumulator) |
|
Power supply |
AC Adapter |
|
Use conditions |
|
|
International protection |
IP65 |
|
Operating temperature |
-10°C - 50°C |
|
Storage temperature |
-20°C - 65°C |
|
Charge temperature |
0°C - 40°C |
|
Moisture content |
5% - 95% without a condensation product |
|
Features |
|
|
Supporting protocol |
ISO18000-6C EPC Gen2 / ISO18000-6B |
|
Operating frequency |
ISM 902MHz ~ 928MHz, Or 920MHz ~ 925MHz |
|
Adjustment frequency |
860MHz ~ 960MHz |
|
Operating regime |
Operation with a fixed frequency of transmitting pulses that are set by a software |
|
Transmitting power |
20 dBm ~ 30 dB (It’s set by a software) |
|
Recording/reading performance |
|
|
Reading speed |
Average reading speed of one 64-bit card 64 less thanper 10 ms |
|
Reading distance |
4m – 8m (It depends on a tag and environment) |
|
Speed of recording |
8 bit less thanper 30 ms |
|
Recording distance |
2m – 4m (It depends on a tag and environment) |
|
Lines reading |
Zoomer (signal) |
|
Interface data port |
|
|
USB port |
Yes |
|
RS232 port |
Yes |
|
RS485 port |
Yes |
|
Weigand port |
Weigand26/34 |
|
Trigger port |
Yes |
|
TCP/IP port (RJ45) |
N/A |
|

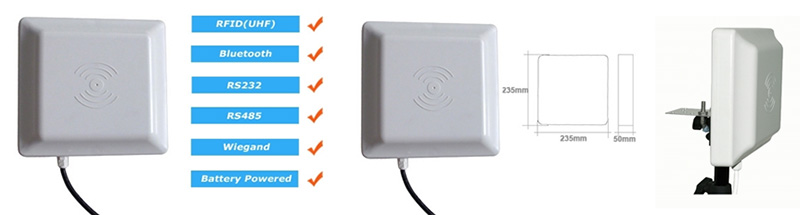

Electric parametres |
|
|
Power supply |
DC+9V,4A |
|
Power consumption |
6W |
|
Dimensions and weight |
|
|
Dimensions |
235mmх235mmх50mm |
|
Weight |
1500 g |
|
Environment operating factors |
|
|
Operating temperature |
-30°C~70°C |
|

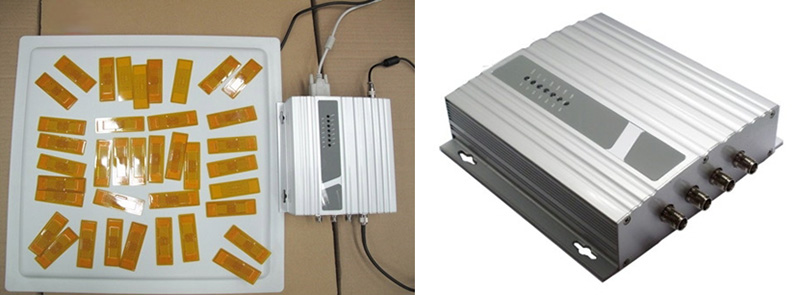

Name |
FM6940 |
Other models |
|
Operation |
3 modes: a proactive mode, answer mode, startup mode |
Usually 1 mode, some models can have 2 modes |
|
Anti-conflict |
Support for labels anti-conflict with excellent effect, the algorithm has no errors |
A large number of errors in the algorithm, the instability of the anti-conflict effect |
|
Label data storage |
Integrated storage system of label data includes port code for the antennas, time, data labels content, etc. |
Usually without a storage, it may contain only store data, without other information |
|
Labelloadingdatasystem |
Different systems of loading data: manual, time estimate, choice of a certain time, release, addition, modification |
- |
|
Label process facilities |
Support the reserved area, EPC areas, TID fields, user’s operational areas, it supports complex data masking tape for various fields |
Only to achieve EPC area by a direct operation without data masking. Indirectly to finalize TID field |
|
Real time |
Integrated real-time clock with no data loss when power is off, reading and writing labels has a timestamp. |
- |
|
|
Full labels EAC operation, support the relay link. |
- |
|
Privacy |
Label privacy function is fully supported |
- |
|
High speed of data operation |
Support for such high-speed data operations as mass flow erase and mass reading,the speed is four times higher. |
- |
|
Functional configuration |
Without malfunction and supply fail |
- |
|
Features |
|
|
Supporting protocol |
ISO18000-6CEPC Gen2 / ISO18000-6B |
|
Operating frequency |
ISM 902MHz ~ 928MHz, Or 920MHz ~ 925MHz |
|
Adjustment frequency |
860MHz ~ 960MHz |
|
Operating regime |
Operation with a fixed frequency of transmitting pulses that are set by a software |
|
Transmitting power |
20dBm ~ 30 dBm (set by a software) |
|
Reading/recording performance |
|
|
Reading speed |
Average reading speed of one 64-bit card 64 less thanper 10 ms |
|
Reading distance |
8m -15m (It depends on a tag and environment) |
|
Recording speed |
8 bit less thanper 30 ms |
|
Recording distance |
4m -7m (It depends on a tag and environment) |
|
Lines reading |
Zoomer (signal) |
|
Interface data port |
|
|
USB port |
Yes |
|
RS232 port |
Yes |
|
RS485 port |
Yes |
|
Weigand port |
Weigand26/34 |
|
Trigger port |
Yes |
|
TCP/IP port (RJ45) |
N/A |
|

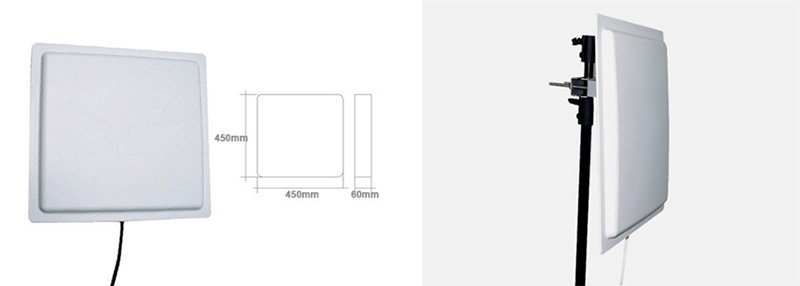

Electric parametres |
|
|
Power supply |
DC+9V,4A |
|
Power consumption |
6W |
|
Dimensions and weight |
|
|
Dimensions |
450mm х 450mm х 60mm |
|
Weight |
3700 g |
|
Environment operating conditions |
|
|
Operating temperature |
-30°C~70°C |
